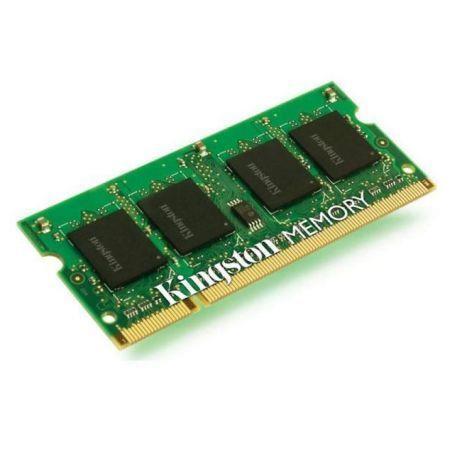

Kingston Technology ValueRAM KVR16LS11/8 memory module 8 GB 1 x 8 GB DDR3L 1600 MHz

Description

<Div> <Span Style="Font-Size:16Px;"><Strong>Kvr16ls11/8</Strong></Span></Div> <Div> <Strong>8Gb 2Rx8 1G X 64-Bit Pc3l-12800 Cl11 204-Pin Sodimm</Strong></Div> <Div> &nbsp;</Div> <Div> Valueram&#39;S 1G X 64-Bit (8Gb) Ddr3l-1600 Cl11 Sdram (Synchronous Dram) 2Rx8 Low Voltage Memory Module Based On Sixteen 512M X 8-Bit Fbga Components. The Spd Is Programmed To Jedec Standard Latency Ddr3-1600 Timing Of 11-11-11 At 1.35V Or 1.5V. This</Div> <Div> 204-Pin Sodimm Uses Gold Contact Fingers.&nbsp;</Div> <Div> &nbsp;</Div> <Div> &nbsp;</Div> <Div> &nbsp;</Div> <Div> <U><Strong>Features</Strong></U></Div> <Div> &nbsp;</Div> <Div> &bull; Jedec Standard 1.35V (1.28V ~ 1.45V) And 1.5V (1.425V ~ 1.575V) Power Supply</Div> <Div> &bull; Vddq = 1.35V (1.28V ~ 1.45V) And 1.5V (1.425V ~ 1.575V)</Div> <Div> &bull; 800Mhz Fck For 1600Mb/Sec/Pin</Div> <Div> &bull; 8 Independent Internal Bank</Div> <Div> &bull; Programmable Cas Latency: 11 10 9 8 7 6</Div> <Div> &bull; Programmable Additive Latency: 0 Cl – 2 Or Cl – 1 Clock</Div> <Div> &bull; 8-Bit Pre-Fetch</Div> <Div> &bull; Burst Length: 8 (Interleave Without Any Limit Sequential With Starting Address &ldquo;000&rdquo; Only) 4 With Tccd = 4 Which Does Not Allow Seamless Read Or Write [Either On The Fly Using A12 Or Mrs]</Div> <Div> &bull; Bi-Directional Differential Data Strobe</Div> <Div> &bull; Internal(Self) Calibration : Internal Self Calibration Through Zq Pin (Rzq : 240 Ohm &plusmn; 1%)</Div> <Div> &bull; On Die Termination Using Odt Pin</Div> <Div> &bull; Average Refresh Period 7.8Us At Lower Than Tcase 85&deg;C 3.9Us At 85&deg;C &Lt; Tcase &Lt; 95&deg;C</Div> <Div> &bull; Asynchronous Reset</Div> <Div> &bull; Pcb: Height 1.18&rdquo; (30Mm) Double Sided Component</Div><br />ValueRAM's 1G x 64-bit (8GB) DDR3L-1600 CL11 SDRAM (Synchronous DRAM) 2Rx8 low voltage memory module based on sixteen 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.35V or 1.5V. This 204-pin SODIMM uses gold contact fingers.<br />ValueRAM Kingston's industry standard memory delivers award-winning performance and legendary Kingston reliability. When you know what you want you want ValueRAM.
